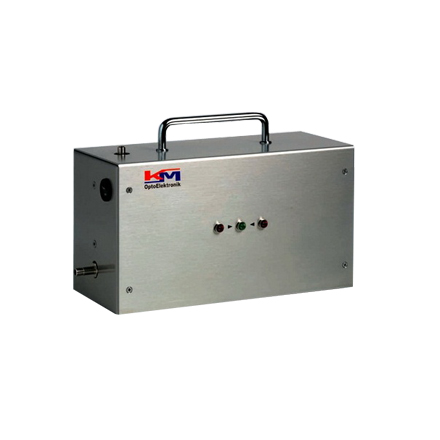

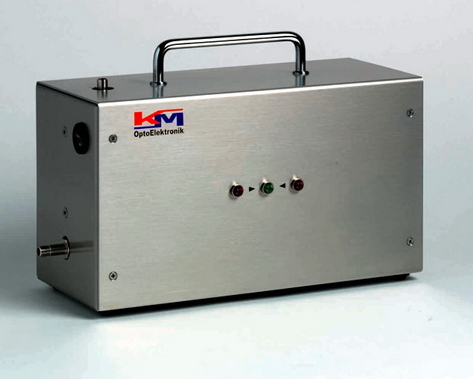

VD 100 Aerosol Dilutor KM Brand

VD 100 dilution system has been developed to ensure specifically and reproducible dilution of aerosols. By adding the VD 100 dilution system upstream, the concentration of the generated aerosol is diluted in proportion 1:100. The protection of the sensors of the particle counter from particulate pollution and over-concentration is thereby ensured, especially when using the AG 250/ AG 2500 aerosol generator as particle source. By using the VD 100 dilution system combined with the AG 250/ AG 2500 aerosol generator and a particle counter, the control of clean rooms, laminar flow boxes and safety work benches is enabled.

With the VD 100 dilution system you are realizing the control of:

  • Clean rooms pursuant to VDI 2083/ DIN1946
  • Laminar flow boxes
  • Cytostatic safety cabinets pursuant to DIN 12980
  • Microbiological safety cabinets pursuant to DIN 12950
  • Highly concentrated aerosols
Specification

Weight: approx. 2,5 Kg
Dimensions: L 28 cm x W 12 cm x H 16 cm
Continuous control of dilution ratio
Constant dilution under varying operation conditions
Ensures a high flow rate at the sampling location
Made in Germany


Advantage
User friendly
Easy handling
Low maintenance
No auxiliary or exhaust air
Long service life
Can be operated in sampling rooms with negative- and over pressure
Stainless steel housing
