Steam Quality Testing
Take the easy route to compliance Assured and compliant results from the outset
To qualify plant/utility/clean/pure steam generators, steam distribution systems and steam supplies to autoclaves in accordance with cGMP (Orange Guide), HTM 01, HTM 2010: 1994, HTM 2031: 1997, EN 285: 2006, DIN 58950, AAMI ST79, ISO 14937:2000, ISPE Baseline Guide for Steam and Water and PDA Technical Report No. 1 - TR1. Test your physical steam quality with assured and repeatable results in no time at all. The SQ1 does not require any validation – simply unpack and go. You may be unfamiliar with steam quality testing or simply be tired of getting unreliable results from inferior and fragile equipment. The SQ1 will get you assured and repeatable results that you can have absolute confidence in and that will satisfy your Regulator/QA immediately! KS & A are committed to providing you with the easiest routes available to compliant steam quality testing. We achieve this through robust equipment design, simple instructions and explanations, excellent training and a first class field service. We have supplied equipment, support and training/testing services to all the leading pharma/biotech companies in over 50 countries. The equipment is not expensive and our expertise and experience is free, providing peace
of mind, in an area unfamiliar to many. Our support is not restricted to the equipment we supply and we will provide advice on your own systems, in the event that non compliant results are found.
Take the easy route to compliance Assured and compliant results from the outset
To qualify plant/utility/clean/pure steam generators, steam distribution systems and steam supplies to autoclaves in accordance with cGMP (Orange Guide), HTM 01, HTM 2010: 1994, HTM 2031: 1997, EN 285: 2006, DIN 58950, AAMI ST79, ISO 14937:2000, ISPE Baseline Guide for Steam and Water and PDA Technical Report No. 1 - TR1. Test your physical steam quality with assured and repeatable results in no time at all. The SQ1 does not require any validation – simply unpack and go. You may be unfamiliar with steam quality testing or simply be tired of getting unreliable results from inferior and fragile equipment. The SQ1 will get you assured and repeatable results that you can have absolute confidence in and that will satisfy your Regulator/QA immediately! KS & A are committed to providing you with the easiest routes available to compliant steam quality testing. We achieve this through robust equipment design, simple instructions and explanations, excellent training and a first class field service. We have supplied equipment, support and training/testing services to all the leading pharma/biotech companies in over 50 countries. The equipment is not expensive and our expertise and experience is free, providing peace
of mind, in an area unfamiliar to many. Our support is not restricted to the equipment we supply and we will provide advice on your own systems, in the event that non compliant results are found.

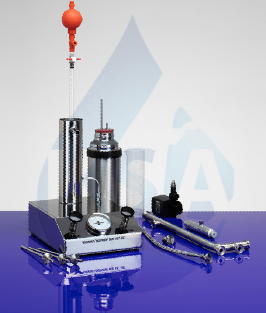

Steam Quality test Kit Contents
non-condensable gas test condenser
submersible cooling water pump & pipes – to allow testing to be carried out at remote locations without a local cooling water supply
insulated steam connection pipe
burette, tap & rubber filler
250 ml measuring cylinder
three pitot tubes (0.4, 0.6 & 0.8 mm dia.)
superheat expansion tube with insulation
Dryness test bung with stainless steel dip tubes
connection tube and clips
1 litre stainless steel vacuum flask
detailed instruction manual and procedures/calculations and report forms in Excel
robust carrying case
To achieve the best results in steam quality testing, you will need
To achieve the best results in steam quality testing, you will need
