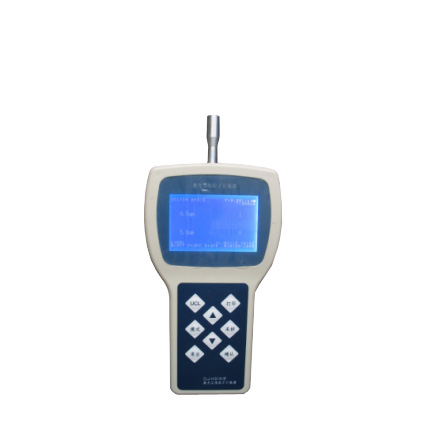

CLJ-H3016 Laser Particle Counter is a kind of instrument used to measure the size and quantity of dust particles in unit volume air of clean environment, it can directly detect 100-300000 class clean environment. With features of using diode laser light source, large touch-screen display, small size, light weight, high precision, simple operation, microprocessor control, storing & printing the measurement results, this product is widely used in electronics, optical, chemical, food, cosmetics, e-health, biological products, aerospace, etc.
Specification
Specification
| Overall Dim.(mm) | 220×130×40 (W×D×H) |
| Display | LCD |
| Weight | 0.8kg |
| Power | 20W |
| Power supply | DC 7.5V±10% build-in Li-ion battery |
| Particle size channel |
0.3, 0.5, 1.0, 3.0, 5.0, 10(μm) six channels 95% UCL calculation, display particle concentration (pcs/m3) |
| Flow rate | 2.83L/min (import pump) |
| Zero count | ≤10min |
| External thermal printer | |
| No. of measuring points | 2～7 |
| measuring times of each measuring point | 2～9 |
| Working condition | Temperature: 10℃-35℃ |
| Humidity: 20%-75% RH | |
| Atmosphere: 86kPa-106kPa | |
| Measurement scope | 100～1000000 class |
| Alarm | Low battery voltage 100, 1000, 10000 class |
| Max. sampling particle concentration | 35000pcs/L(≤0.5μm), without acid-base corrosive air |
| Continuous working time | 5 hours |
| Light source and life-time | Diode laser; ＞30000 hours |
| Data storage | 1000 groups, without missing when power-off, equipped with PC special communication software |
| Standard configuration | Instrument container, recharger, probe, self-purifier, data wire, communication software |
| Optional accessory |
Micro-printer, humiture probe |
