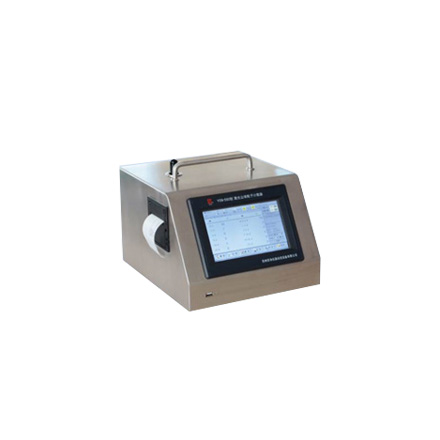

Y09-550 Particle Counter

Y09-550 laser particle counter (50L/min) is a kind of instrument used to measure the size and quantity of dust particles in unit volume air of clean environment, which can directly detect A and B class clean environment. With features of using diode laser light source, large touch-screen display, small size, light weight, high precision, simple operation, microprocessor control, storing & printing the measurement results and so on, this product is widely used in electronics, optical, chemical, food, cosmetics, e-health, biological products, aerospace, etc.

Features:

1. flow rate is 50 L / min.
2. AC and DC power supply for option.
3. touch screen control operation.
4. display six-channel particle sizes and particle concentration (pcs / m3).
5. automatic UCL calculation (for the 2010 version of GMP, 1998 version of GMP, ISO14644, etc.).

Specification

Overall dim.(mm) 285 x 280 x 360 (Wide*High*Deep)
Display Touch screen (LCD)
Weight 7.5Kg
Power 40W
Power supply DC16.8V(Built-in Lithium Battery)
Size channels 0.3、0.5、1、3、5、10μm
Calculation 95% UCL calculation of particle concentration can be displayed directly (particles / cubic meter, grain / cubic feet)
Flow rate 50L/min (Import pump)
Sample time 0~9999s (selectable)
Zero count ≤10min
Location labels 0~9999
Print Built-in Thermal Printer
Alarm I00, 1000, 10000 Class alarm
Date storage 20000 Samples/300Samples of UCL(with PC Software)
Date output USB Port
Light source Diode laser (30000 hours mean time between failures)
Max. Particle concentration 35000 particles/L
Operating Time 8 hours
Working condition Temperature:10~35℃;  Humidity:20%~75%RH;  Atmosphere Pressure: 86~106Kpa
Overall dim.(mm) 285 x 280 x 360 (Wide*High*Deep)
