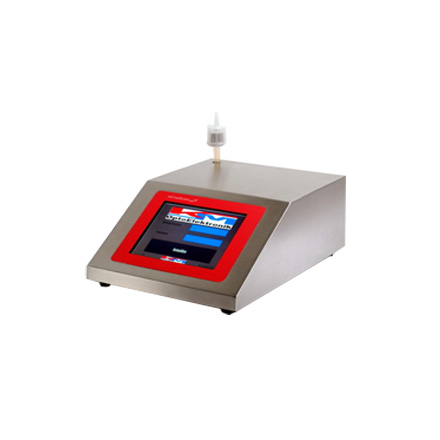

ACS Plus 128 0.1um Particle Counter/ 0.1um Particle Counter with 1CFM
0.1um Particle Counter Features
• Size range from 0.1 um with a maximum of 16 freely selectable particle size channels
• Flow rate 1 CFM.
• Built-in measuring data memory for 50000 measurements
• Access authorization concept with password protection
• Software PAS for evaluation of the measured data via PC
• 8.4“ LCD TFT display
• Optionally with removable/ rechargeable Li-Ion batteries for easy operation at various measuring points
• CAN-BUS Interface for management of a network spanning up to 32 particle sensors (slaves) without need of additional hardware
• Weight: approx. 8 Kg
• Made in Germany by KM OptoElektronik GmbH
Easy handling
The large-size display with touch-screen function and concise menu navigation ensures a simple and trouble-free implementation even of major settings. Furthermore, the built-in access authorization concept offers an easy way to grant specific access permissions for individual operators. In addition the non-reflecting display surface allows a data reading from greater distance.
Flexible monitoring
Adapted to application requirements the high-end counter ACS Plus may be used as a stand-alone unit
or as a network monitoring system. Via device interface with appropriate sensors it is always possible to
monitor and record temperature patterns, relative humidity, differential pressure and volume flow, if desired. The implementation of an alarm panel has also been considered.
GMP conforming Design
One of the main conditions for the application of equipment within a GMP controlled area is a surface
design being suitable for the pharmaceutical industry. This of course also applies to particle counters. In
this regard the capabilities for clean room applications as well as the resistance to detergents and
disinfectants are most important technical features which have been implemented with the design of the
surface characteristics.
Specification
| Model | ACS Plus 128 |
| Light Source | Laser diode |
| Size Range(um) | 0.1 – 2 (5) |
| Concentration Limit | 150000/ 1 CFM |
| Flow Rate | 28.3L/min |
| Weight (kg) | 8 |
| Dimension L*W*H(mm) | 345x265x145 |
| Flow-Generator | Vacuum pump |
| Flow-Control | Electronically monitored |
| Calibration | Per ISO 21501-4; Latex-Aerosol |
| Display and Operation | Robust and bright 8.4“ LCD TFT display SVGA, 800x600 pixel, luminous intensity 350cd/ m²,sunlight readable transmissive TFT active-matrix screens with cold cathode backlighting (CCFL),wide viewing angle |
| Sampling/Rinsing Time | 1s to 99h,59min,59s |
| Sampling Modes | Single measuring with 1 - 9 measurements for each cycle and automatic averaging, or continuous measuring with automatic averaging of 2 - 9 measurements each |
| Standard | ISO 14644-1, VDI 2083 |
| Printer | Thermal printer 58 mm |
| Communication Mode | Standard RS 232 for single application, RS 485 for networking |
|
Data Content per Record |
Date, time, ID number, alphanumeric key, measuring and rinsing time, 16 particle size channels with cumulative particle count |
| Audible Alarm | Single particle detection by acoustics, threshold exceeding alarm adjustable |
| Power Supply | 230/ 115 VAC, 50/ 60 Hz, max. 400 Watt |
| Operating Range |
5 - 35 °C, 10 - 80 % RH, noncondensing |
