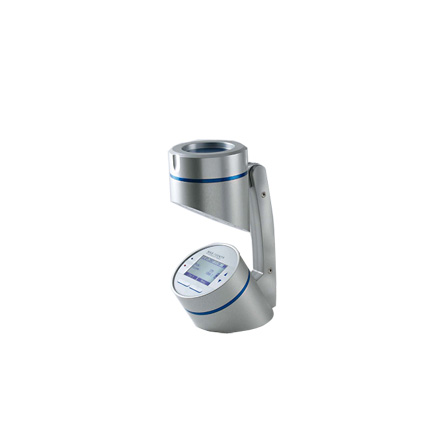

MAS-100NT Microbial Air Sampler

 Microbial Air Sampler Description

The Microbial Air Sampler MAS-100 NT® serves to measure the microorganisms in clean rooms and sterile environments in pharmaceutical companies and other highly sensible areas. The Microbial Air Sampler MAS-100 NT® is considered the gold standard amongst the air samplers.

new! SQS -Cycle: This cycle allows to divide a given volume of air into sub volumes over a given period of time.

Application field

Clean rooms especially in the pharmaceutical environment.

Advantages

·   Explosions proof version available
·   Integrated mass-flow sensor
·   Use of standard 90-100 mm petri dishes
·   Dialogue software
·   PC- communication incl. software

Technical specifications

·   Airflow 100 liter/minute
·   Rechargeable battery
·   Autonomy approx. 7h
·   Body made from anodized aluminum
·   Autoclavable sampling head
·   PC interface

Material Anodized aluminum RTC battery RTC (real time clock) battery;  service life: 10 years
Height 27cm Operation temperature 0—40℃
Weight 2.2kg Operation humidity 0—80% RH
Diameter 11cm Data interface USB 2.0
Flow rate 100 L/min, accuracy±2.5%, comply with ISO 14698-1 standard functional design
guide documents		 73/23/EEC, 89/336/EEC, DIN EN
61326-1:1997,
DIN EN 61010-1:2001, GAMP 4.0:2001
Air flow adjustment build-in air velocity meter to adjust automatically
Sampling volume Preset volume:50, 100, 250, 500, 1000 L (0-2000L)
Petri dish Dia.90-100mm standard culture dish CE certification Emission: EN 61326-1:2006, EN
55011:1998+A1:99
Immunity EN 61326-1:2006, EN
61000-4-2:1995
EN 61000-4-3:1995:2002, EN 61000-4-4:1995
EN 61000-4-5:1995, EN 61000-4-6:1996
EN 61000-4-8:1993, EN 61000-4-11:2004
Triangle bracket adapter   Portable handle optional accessory
Rechargeable battery Li-ion battery group, 12V, 2.5A
Recharger 110-240V,50-60KHz
Motor 6V DC
Screen high definition screen with white background chart
