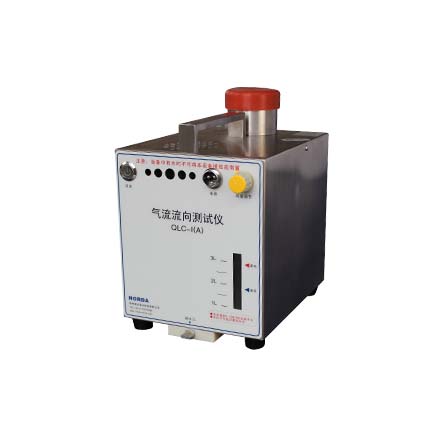

QLC-I(A) Ultrapure Water Fogger Summary-QLC-I(A) is a kind of economical DI water fogger with 1.5 times fog spray volume of QLC-I, designed according to the principle of ultrasonic atomization, used to make airflow, pattern and turbulence visualization of clean-room by atomizing DI water into water droplets (1-10um), applicable for class 100- class 10000 clean-room.
QLC-I(A) Ultrapure Water Fogger Features:
1. low cost of after-sales service
2. measure laminar flow ≥ class 100
3. 0.1-4CFM adjustable fog spray, 50 minutes fog spray time
4. 3-4 inches fog spray distance
5. visual water level
6. instant On/Off operation
7. easy fill water port (DI or pure water)
8. visual air flow direction and velocity
9. perfect balance of air flow and pressure
Specification
Housing: SUS304
Output: 0.1-4 cfm (customized 13-23cfm)
Power: 300w
Power supply: 220v 50HZ
Liquid tank capacity: 3000 ml
Fog medium: 2-64MΩ deionized or pure water
Consumption: 35ml/min
Weight: 5kg (without water)
Dimension: 180mm×215mm×280mm
Application:
Cleanroom laminar flow tests
Airflow balancing
Wet bench exhaust optimization
Chemical process equipment ventilation tests
Personnel safety exhaust verification
Pressure balancing between rooms and spaces
Leak detection in ducts
QLC-I(A) Ultrapure Water Fogger Standard configuration:
main instrument, 1.5m conduct pipe, power adapter, power wire, operation manual, certification.
Optional accessories:
carry case, parallel pipe, clean trolley, background cloth, bracket.
