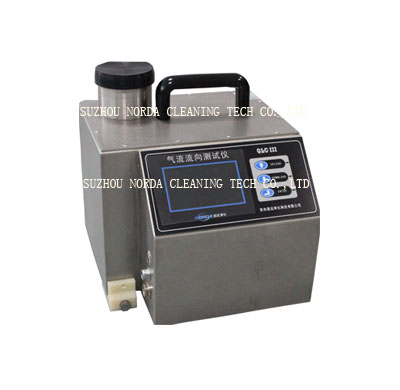

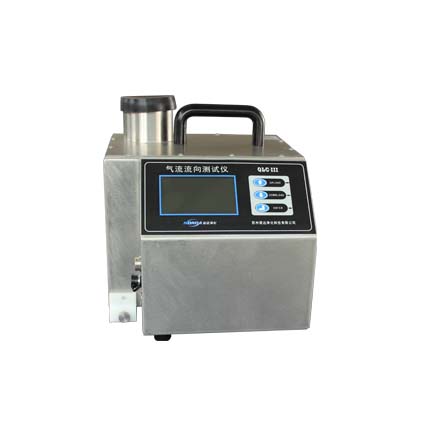

Multifunctional DI Water Fogger QLC-IIIAirflow test

the most powerful pure water fogger  /  airflow test

QLC-III smoke fogger  is the most powerful pure water fogger of our company with 2 times fog spray volume of others ,like Cleanroom fogger,it is the improved and innovated version on the base of QLC-I(A), designed according to the principle of ultrasonic atomization, used to make airflow, pattern and turbulence visualization of clean-room by atomizing DI water into water droplets (3-5um), applicable for class 100- class 10000 clean-room.
QLC-III water fogger Features:
1. low cost of after-sales service
2. measure laminar flow ≥ class 100
3. 10-65ml/min fog output volume, 3 gears adjustment ,small ,middle ,large;
4. 50-120 minutes continuous fog spray time
5. 0-60 minutes time setting
6. ideal fog particle size ≤5 um
7. easy fill water port (DI or pure water)
8. optional conduct pipe bracket and wireless controller
9. digital display air volume, fog volume, fogging time

Pure water fogger QLC-III Specification
Air flow volume adjust: samll to large
Fog volume adjust: 3 gear : samll,middle, large.
Operation temperature: 5℃～40℃
Voltage: AC 220V
Dimension: 280mm×84mm×295mm
Weight: 8.0KG
Liquid tank capacity: 5L
Dia. of conduct pipe: 70mm
Atomizing fog size: 0.3～5μm
Output: 2-25 cfm (adjustable)
Consumption: 10-65ml/min
Fog medium: 2-64MΩ deionized or pure water
Continuous fog spray time: 50-120 minutes
Pure water fogger QLC-III Application

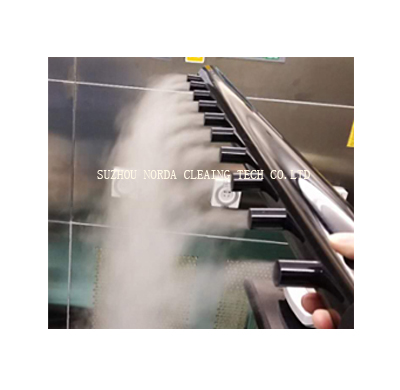

Cleanroom laminar flow tests
Airflow balancing
Wet bench exhaust optimization
Chemical process equipment ventilation tests
Personnel safety exhaust verification
Pressure balancing between rooms and spaces
Leak detection in ducts

Pure water fogger QLC-III Standard configuration:

main instrument, 2 m conduct pipe, mains adapter, power wire, operation manual, certification.

Pure water fogger QLC-III Optional accessories:

carry case, parallel pipe, clean trolley, background cloth, bracket, wireless controller.
