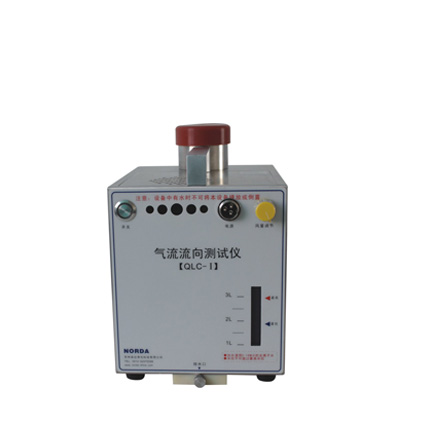

QLC-I Ultrapure Water Fogger Summary
QLC-I Ultrapure Water Fogger is a kind of economical DI water fogger, designed according to the principle of ultrasonic atomization, used to make airflow, pattern and turbulence visualization of clean-room by atomizing DI water into water droplets (1-10um), applicable for class 100- class 10000 clean-room.
Features:
1. low cost of after-sales service
2. measure laminar flow ≥ class 100
3. 0.1-4CFM adjustable fog spray, 45 minutes fog spray time
4. 3-4 inches fog spray distance
5. visual water level
6. instant On/Off operation
7. easy fill water port (DI or pure water)
8. visual air flow direction and velocity
9. perfect balance of air flow and pressure
Specification
Housing: SUS304
Output: 0.1-4 cfm (customized 13-23cfm)
Power: 150w
Power supply: 220v 50HZ
Liquid tank capacity: 3000 ml
Fog medium: 2-64MΩ deionized or pure water
Consumption: 25ml/min
Weight: 4.5kg (without water)
Dimension: 180mm×215mm×280mm
Application:
Cleanroom laminar flow tests
Airflow balancing
Wet bench exhaust optimization
Chemical process equipment ventilation tests
Personnel safety exhaust verification
Pressure balancing between rooms and spaces
Leak detection in ducts
Standard configuration:
main instrument, 1.3m conduct pipe, mains adapter, power wire, operation manual, certification.
Optional accessories:
carry case, parallel pipe, clean trolley, background cloth, bracket.
