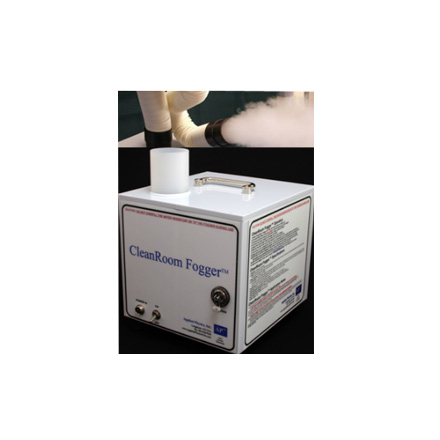

Cleanroom fogger Summary:
Cleanroom fogger a kind of ultra pure water fogger, designed according to the principle of ultrasonic atomization, used to make airflow, pattern and turbulence visualization of clean-room by atomizing DI water into water droplets (1-10um), applicable for class 100- class 10000 clean-room.
Cleanroom fogger Features:
1. low cost of after-sales service
2. measure laminar flow ≥ class 100
3. 14CFM adjustable fog spray, 30-50 minutes fog spray time
4. 3-4 inches fog spray distance
5. visual water level
6. instant On/Off operation
7. easy fill water port (DI or pure water)
8. visual air flow direction and velocity
9. perfect balance of air flow and pressure
Specification
Housing: Plastic
Output: 14 cfm
Power: 300w
Power supply: 220v 50HZ
Liquid tank capacity: 3300 ml
Fog medium: 2-64MΩ deionized or pure water
Consumption: 35ml/min
Weight: 7.7kg (without water)
Dimension: 254mm×229mm×279mm
Application:
Cleanroom laminar flow tests
Airflow balancing
Wet bench exhaust optimization
Chemical process equipment ventilation tests
Personnel safety exhaust verification
Pressure balancing between rooms and spaces
Leak detection in ducts
Standard configuration:
main instrument, 1.5m conduct pipe, power adapter, power wire, operation manual, certification.
Optional accessories:
carry case, conduct pipe.
