AG1800 Aerosol Generator PAO HEPA leak test

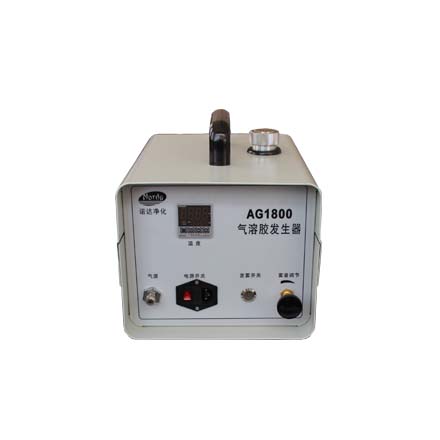

Aerosol Generator AG-1800 Summary

AG1800 is designed to generate multiple diameters aerosol for testing HEPA filtration system by combination with TDA-2I photometer, with safest oil insurance supply system and heat interchange function. AG 1800 is ideal for certifying or testing HEPA filters or installations with air flows from 1,500 to 65,000 cfm. It requires an inert gas source and AC220v±10%50HZ power source.

Aerosol Generator Specification

Air flow range 1,500-65,000cfm(42-1,839.5m3/min)
Aerosol concentration 10ug/L:  65,000cfm(1,839.5m3/min)
100ug/L:  6,500cfm(183.95 m3/min)
Aerosol type PAO, DOP, Polydispensed
Generator type vapor condensation
Compressed air(inert) Nitrogen, Argon, Carbon Dioxide or Helium (50psi))
Power source AC220v±10%50HZ
Overall dim.(mm) 280×390×300
Weight (kg) 14

Aerosol Generator Application

leakage detecting for clean-room, laminar flow bench, biosafety cabinet, glove box, HEPA vacuum cleaner, HVAC system, ULPA/HEPA filters, negative filtration device, operation room, nuclear filtration system, collective protection filters, etc.
